Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: TID
  • Model Number: TD-M558
  • Type: Vehicle Mouted
  • Dimensions: 145*47*190mm
  • Frequency Range: 136-174/400-490MHz
  • Storage Channel: 200
  • Talk Range: 60km
  • Function: Vehicle
  • Weight: About 1.2kg
  • Operating Temperature: -20℃-60℃
  • Operating Voltage: 12.8v
  • Voice Prompt: Yes
  • ANI ID: Yes
  • Scrambler: Yes
  • CTCSS: 1024
  • DCSS: 50
  • Power output: 60W

Packaging & Delivery

Packaging Details TID standard packing
Delivery Time In 1 week after order confirmed, samples ready anytime
TID TD-M558 uhf vhf vehicle high quality Amateur Mobile Transceiver

Company Information


We are manufacturer of two way radio with 13 years experience. We are concerned with the design, development and production of telecommunication equipment. We have branches in Fujian, Guangzhou and Dubai, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Our customers have cover more than 100 countries in the world.


Main functions:

Our Services



Trail order is acceptable, all the products are best quality with 18 months warranty.

We promise small quantity can be ship out once receive payment, big quantity can be shipping out within 1 week after receive payment.



01. Menu setting
02. Work by repeater station
03. Auto repeater offset frequency
04. Remote Kill/stun/activate/revive
05. Wide/Narrow band setting
06. Channel Name editing
07. CTCSS/DCS Setting& Scanning
08. High/Mid/Low Power selectable
09. Voice compander
10. Repeater offset shift
11. DTMF/2 ton/5 tone
12. Talk around
13. Voice prompt
14. Auto Power off
15. Scrambler
16. Emergency Alarm
17. COMP function
18. Scan function
19. 1750Hz tone
20. ANI ID
21.Microphone lock/ Mic programmable menu
22.Call keypad
23.200 channels





Specification:



Frequency range (TX)136-174MHz
 245-260MHz
 350-370MHz
 400-490MHz
 470-520Mhz
Frequency range (RX)136-174MHz
 245-260MHz
 350-370MHz
 400-490MHz
 470-520Mhz
Modulation modeF3E(FM)
Antenna impedance50Ω
Rated voltage13.8V DC ±15%
CurrentTransmitting    <12A
Receiving    <1.0A (Output 2W)
Frequency stability ≤±2.5PPm
Transmitting
Output powerVHF: 60W(H)   25W(Mid) 10W(Low)
 UHF: 40W(H)   25WMid) 10W(Low)
Reactance modulation  Reactance
Modulation limit25KHz±5KH, 12.5KHz±2.5KHz
Audio distortion<5%
Adjacent channel power25KHz≥65dB, 12.5KHz≥60dB
Stray radio frequency measure<-60dB
Modulation character3dB~-3dB (Modulation frequency: 300Hz~3KHz)
Receiving
CircuitryAdopt quadratic frequency conversion superheterodyne mode
Mid-frequency (1st/2nd)49MHz/450Khz
Sensitivity25KHz<0.2μV, 12.5KHz<0.25μV
Selectivityminus 6dB  25KHz<12KHz, 12.5KHz<10KHz
minus 60dB 25KHz<30KHz, 12.5KHz<24KHz
Same channel restrain>-8dB
Adjacent channel selective25KHz≥65dB, 12.5KHz≥60dB
Stray response anti-interference25KHz≥65dB, 12.5KHz≥60dB
Intermodulation anti-interference25KHz≥60dB, 12.5KHz≥55dB
Blocking≥90dB
Audio response1dB~-3dB (Modulation frequency: 300Hz~3KHz)
Audio distortion<5% (>2W)(Microphone internal resistance is 8Ω
Modulation limit

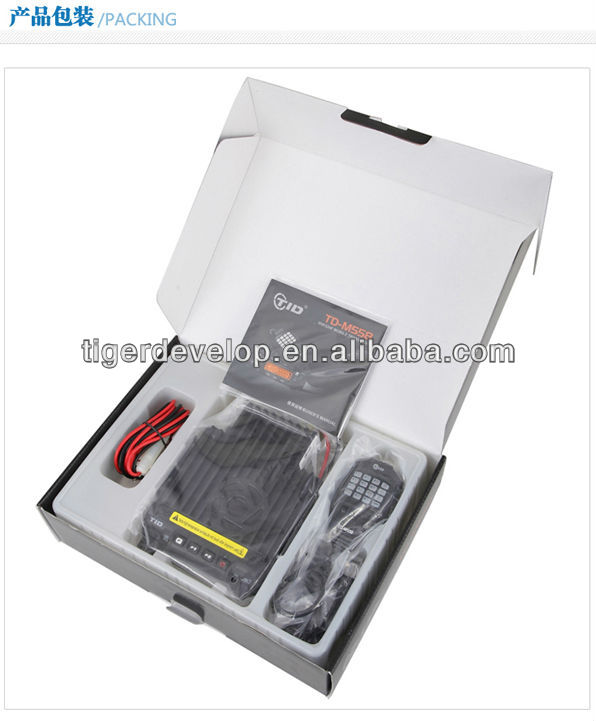

Packing pictures:

Packaging & Shipping

  We can ship through DHL, FedEx, Ups, TNT, UPS, by sea , air. All the delivery charge is cheap and credible.




FAQ

We accept pay by Paypal, Western Union, TT.

Small order cna be sent once receive yoru payment, big quantity can be sent out within 1 week.

We have plenty goods in stock.
