Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: TID
  • Model Number: TD-M558
  • Type: Vehicle Mouted
  • Dimensions: 145*47*190mm
  • Frequency Range: vhf:136~174MHz,220~260MHz; uhf 350~390MHz,400~490MHz
  • Storage Channel: 200
  • Talk Range: More than 25 km
  • Color: black
  • Output power: 60W
  • Support: UFH/VHF
  • Tone: 2 tone/5 tone
  • Scramble: Support
  • Compander: Support
  • opterating temperature: -20 to 60℃
  • COMP function: Yes
  • CTCSS/DCS: Yes
  • Certificate: CE

Packaging & Delivery

Packaging Details TID standard packing
Delivery Time In 2 weeks after order confirmed samples ready anytime

   high range fruquency mobile transceiver cb radio walkie talkie

  • Remote Kill/stun/activate/revive
  • Wide/Narrow band setting
  • Channel Name editing
  • CTCSS/DCS Setting& Scanning
  • High/Mid/Low Power selectable





Our Services



Trail order is acceptable, all the products are best quality with 18 months warranty. We promise small quantity can be ship out once receive payment, big quantity can be shipping out within 1 week after receive payment. We also can do OEM/ODM.



TD-M558 mobile transceiver Main functions:



  • Menu setting
  • Work by repeater station
  • Auto repeater offset frequency
  • Remote Kill/stun/activate/revive
  • Wide/Narrow band setting
  • Channel Name editing
  • CTCSS/DCS Setting& Scanning
  • High/Mid/Low Power selectable
  • Voice compander
  • Repeater offset shift
  • DTMF/2 ton/5 tone
  • Talk around
  • Voice prompt
  • Auto Power off
  • Scrambler
  • Emergency Alarm
  • COMP function
  • Scan function
  • 1750Hz tone
  • ANI ID
  • Microphone lock/ Mic programmable menu
  • Call keypad
  • 200 channels
high range fruquency mobile transceiver cb radio walkie talkie Specification:

Frequency range (TX)136-174MHz
 245-260MHz
 350-370MHz
 400-490MHz
 470-520Mhz
Frequency range (RX)136-174MHz
 245-260MHz
 350-370MHz
 400-490MHz
 470-520Mhz
Modulation modeF3E(FM)
Antenna impedance50Ω
Rated voltage13.8V DC ±15%
CurrentTransmitting    <12A
Receiving    <1.0A (Output 2W)
Frequency stability ≤±2.5PPm
Transmitting
Output powerVHF: 60W(H)   25W(Mid) 10W(Low)
 UHF: 40W(H)   25WMid) 10W(Low)
Reactance modulation  Reactance
Modulation limit25KHz±5KH, 12.5KHz±2.5KHz
Audio distortion<5%
Adjacent channel power25KHz≥65dB, 12.5KHz≥60dB
Stray radio frequency measure<-60dB
Modulation character3dB~-3dB (Modulation frequency: 300Hz~3KHz)
Receiving
CircuitryAdopt quadratic frequency conversion superheterodyne mode
Mid-frequency (1st/2nd)49MHz/450Khz
Sensitivity25KHz<0.2μV, 12.5KHz<0.25μV
Selectivityminus 6dB  25KHz<12KHz, 12.5KHz<10KHz
minus 60dB 25KHz<30KHz, 12.5KHz<24KHz
Same channel restrain>-8dB
Adjacent channel selective25KHz≥65dB, 12.5KHz≥60dB
Stray response anti-interference25KHz≥65dB, 12.5KHz≥60dB
Intermodulation anti-interference25KHz≥60dB, 12.5KHz≥55dB
Blocking≥90dB
Audio response1dB~-3dB (Modulation frequency: 300Hz~3KHz)
Audio distortion<5% (>2W)(Microphone internal resistance is 8Ω
Modulation limit

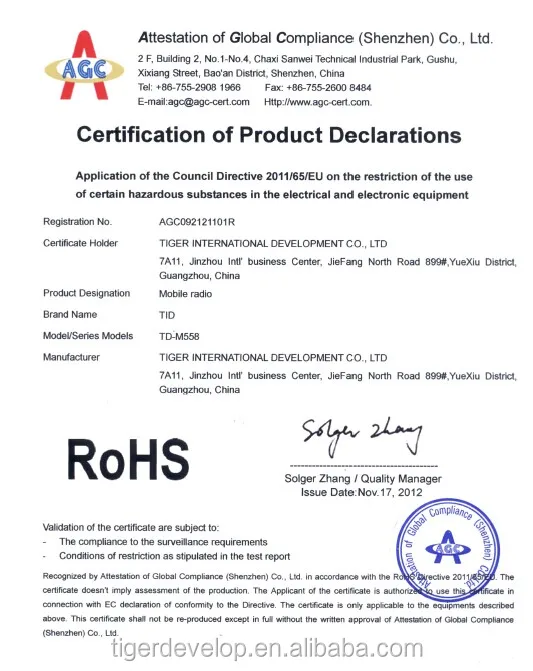

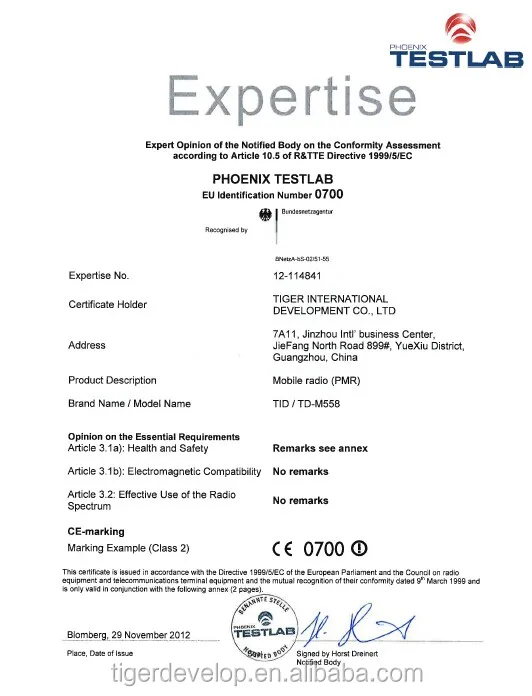

Certificate




5). Payment Terms

1. 100% T/T Advance

2. 100% Western Union Advance

3. 100% Sample by paypal Advance



6).Shipping Terms

1. EX-works Guangzhou

2. EX-works Hongkong

3. EX-works Xiamen

4. EX-works Dubai



7).Shipping Method



The delivery can by air/Sea or by express, for small order we suggest you can consider sent by express like DHL, FedEx, UPS…



8).Lead time:



Most of our product have ready stock, sample order is ready any time, and bulk order depend on how many pcs you want.

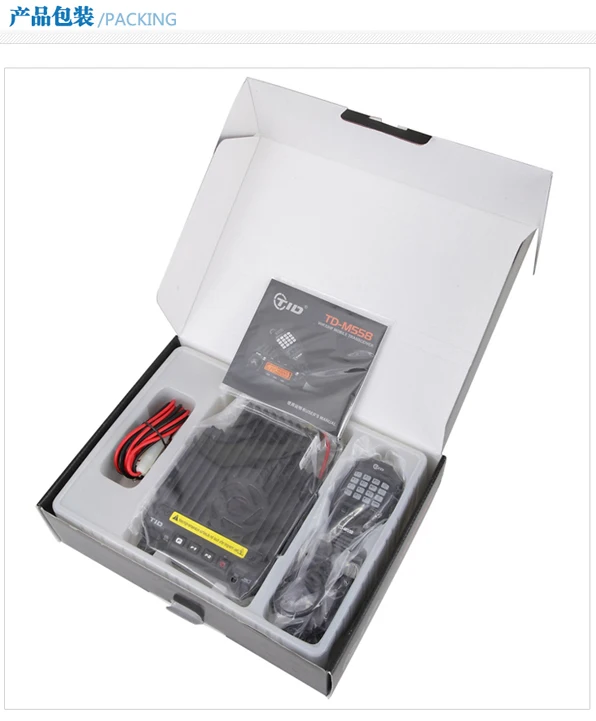

9).Packaging :



Unique packaging with durable ,environmental , beauty design character (plastic bag color gift box) .
