Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: TID
  • Model Number: GM360
  • Type: Vehicle Mouted
  • Dimensions: 186mm*179mm*59mm/255mm*185mm*72m
  • Frequency Range: VHF/UHF
  • Storage Channel: 128
  • Talk Range: 60km
  • Brand: TID
  • Color: Black
  • Output power: 60W
  • UHF: Support
  • VHF: Support
  • Tone: 2 tone/5 tone
  • Scramble: Yes
  • Compander: Yes
  • quality: excellent
  • model: GM360

Packaging & Delivery

Packaging Details: TID standard packing
Delivery Detail: In 1 week after order confirmed samples ready anytime

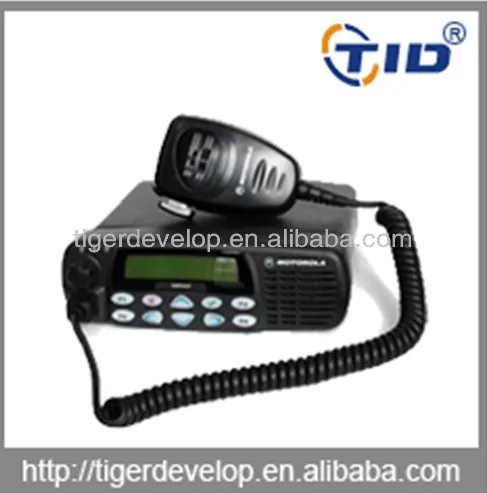

GM360 high power car radio UHF VHF Moblie Long Talking Range Transceiver Two Way Radio GM360





Specification:


GENERAL SPECIFICATION

Low Band (GM360only)

VHF

UHF

*Frequency Range

29.7-36MHz

36-42MHz

42-50MHz

          136-174MHz

403-470MHz

450-527MHz (1-25W)

450-520MHz (25-40W)

Frequency Stability (-30 C to 60 C,25c Ref,)

5ppm

± 2.5pm

± 2ppm

Channel Capacity

128 Channels

Power Output

40 - 60 W

1 - 25W

25 - 45W

1 - 25W

25 - 40W

Power Supply

13.2Vdc (10.8 - 15.6 Vdc) Negative Vehicle ground

Channel Spacing

12.5/20/30kHz

12.5/20/25 kHz

Dimensions (L x W x H)

(add 9mm for volume knob)

255mm x 185mm x 72mm          186mm x 179mm x 59mm

Weight

2040g (4.5lbs)

1400g (3.15 lbs)

Operating Temperature

-30°C to +60°C

Sealing

Passes rain testing to IP54

Shock and Vibration

Meets MIL-STD 810-c,D&E and TIA/EIA 603

Dust

Meets MIL-STD 810-C,D&E and TIA/EIA 603

Humidity

Meets MIL-STD 810-C,D&E and TIA/EIA 603







Transmitter

Low Band

VHF                UHF

Modulation Limiting

± 12.5 @ 12.5kHz

± 5.0 @ 20/30kHz

± 2.5kHz @12.5kHz

± 4.0kHz @20kHz

± 5.0kHz @25kHz

FM Hum & Noise

-40dB @ 12.5kHz

- 45dB @ 20/30kHz

- 40dB @ 12.5kHz

- 45dB @ 20/25kHz

Conducted/Radiated Emissions

- 26dB < 1 GHz

- 36dBm < 1 GHz

- 30dBm < 1 GHz

Adjacent Channel Power

-60dB < 12.5kHz

- 70dB < 20/30kHz

- 60dBm @ 12.5kHz

- 70dBm @ 20/25kHz

Audio Response (300 to 3000Hz)

Audio Distortion @ 1000Hz, 1000Hz,

60% Rated Max. Deviation

+ 1, - 3dB



3%
