Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: TID
  • Model Number: DP880
  • Type: Handheld
  • Dimensions: 125*54*35mm
  • Frequency Range: VHF:136-174MHz UHF:350-400MHz/400-470MHz
  • Storage Channel: 512channels
  • Talk Range: 3-5KM
  • Channel Spacing: 1024
  • Output Power: VHF 5W UHF 4W
  • Battery capacity: 2400MAH
  • Operating Voltage: DC7.4V
  • analog+digital: both
  • Battery Life: Analog: 13hrs/11.5hrs Digital:15hrs/13hrs
  • Color: Balck
  • Weight: 230g(with standard battery and antenna)
  • channel space: 12.5KHz/25KHz
  • Warranty: 18months

Packaging & Delivery

Packaging Details Gift box packing
Delivery Time After order confirmed 2 weeks, samples ready any time

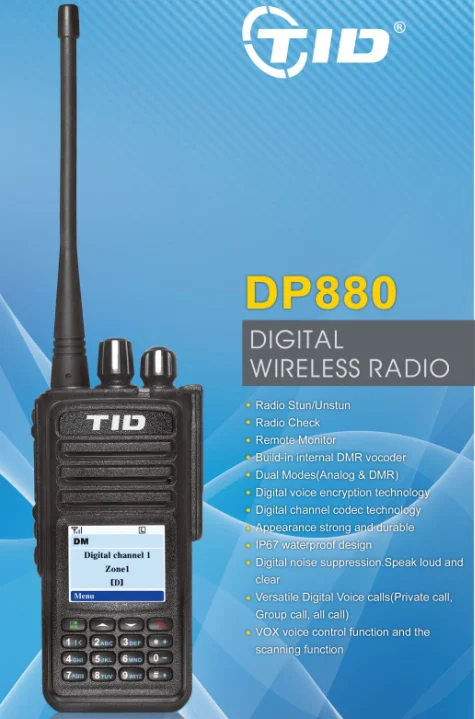

DP880 IP67 waterproof dmr radio digital two way radio




Product Description


  • Radio Stun/Unstun
  • 1.77 inches Large TFT LCD
  • Remote Monitor
  • 2200mAh Li-ion Battery fo long time operation





 Main Features


1.77 inches Large TFT LCD

DMR Tier II and Analog Mode

512 Channels,64 Zones

DTMF / CTCSS / DCS encoding and decoding functions

Secure Encryption Communication

Private Call,Group Call,All Call and Emergency Call

Wide / narrow (12.5KHz / 6.5kHz) Select

VOX hands-free  functions

Lone Worker

Channel Scan

TOT transmission limit function

Password Protection when turn on the radio

High / Low Power Output



Frequency RangeUHF1:400-470MHZ; UHF2:450-520MHZ
UHF3:350-400MHZ; VHF:136-174MHZ
Channel Capacity215
Channel Spacing12.5KHZ
Operating VoltageDC7.4V(rated)
Battery 2000mAh(Li-Ion)
Battery LifeAnalog/Digital:12.5/16.5h
(5-5-90 Duty Cycle,High Tx Power,)
Weight(with antenna & standard battery)220g
Dimensions (H*W*D)107 x 54 x 31mm
(with standard battery,without antenna)4.64x2.18x1.31 inches
Frequency Stability+/-2.5ppm
Antenna Impedance50OHM
Sensitivity (Analog)0.22μV(12dB SINAD)
Sensitivity (Digital)0.22uV/BER5%
Selectivity60dB @ 12.5KHz /70dB @ 25KHz
Spurious Response Rejection70dB @ 12.5/25KHz
Intermodulation65dB @ 12.5/25KHz
S/N40dB @ 12.5KHz; 45dB @ 25KHz
Rated Audio Power Output1.0W
Rated Audio Distortion≤3%
Audio Response+1 ~ -3dB
Conducted Spurious Emission<-57dBm
RF Power OutputUHF/VHF High Power:4/5W
UHF/VHF  Low Power:1W
FM Modulation11K0F3E @12.5KHZ; 16K0F3E @ 25KHz
4FSK Digital Modulation12.5KHz Data Only: 7K60FXD;
 12.5khz Data & Voice:7K60FXW
Conducted/Radiated Emission-36dBm<1GHz;
Modulation Limiting+/-2.5KHz @12.5KHZ; +/-5.0KHz @ 25KHz
FM Noise40dB @12.5KHZ; 45dB @ 25KHz;
Adjacent Channel Power60dB @12.5KHZ;
 70dB @20/25KHz;
Audio Response+1~-3dB
Audio Distortion<=3%
Digital Vocoder TypeAMBE++
Digital ProtocolETSI-TS102 361-1,-2,-3










Our Services

  Trail order is acceptable, all the products are best quality with 18 months warranty. We promise small quantity can be ship out once receive payment, big quantity can be shipping out within 1 week after receive payment. OEM/ODM are acceptable for us.




Packaging & Shipping

 Payment Terms

1. 100% T/T Advance

2. 100% Western Union Advance

3. 100% Pay pal Advance


Shipping Terms

1. EX-works Guangzhou

2. EX-works Hongkong

3. EX-works Xiamen

4. EX-works Dubai


Shipping Method


The delivery can by air/Sea or by express, for small order we suggest you can consider sent by express like DHL, FedEx, UPS…


Lead time:


Most of our product have ready stock, sample order is ready any time, and bulk order depend on how many pcs you want.



Packaging :


Unique packaging with durable ,environmental , beauty design character (plastic bag color gift box) .
